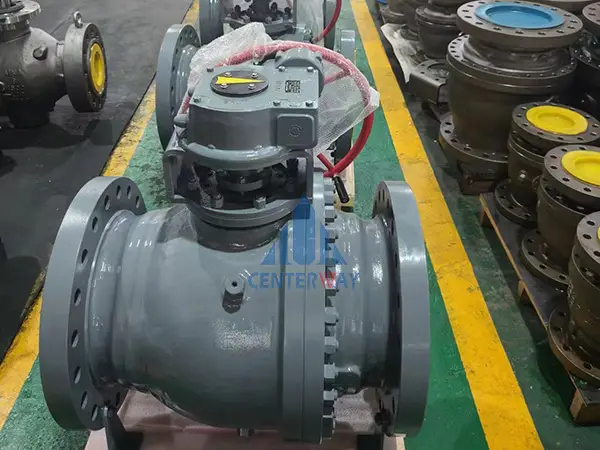

Plug valve

ИЩИТЕ, КАКОЙ ПРОДУКТ ВАМ НУЖЕН, ИЛИ ОТПРАВЬТЕ ЗАПРОС

Запрос Цитировать

Описание
Спецификация
Стандарт
Запрос онлайн
Рекомендуемые продукты

Описание

Sleeve type soft sealing plug valve acc.to ANSI

Material for main parts

NO.	Part name	Material


1	Body	ASTM A216-WCB ASTM A351-CF8,CF8M,CF3,CF3M



2	Sleeve	PTFE



3	Plug	ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316



4	Gasket	Flexible graphite+stainless steel,PTFE


5	Adjusting gasket	ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304,F316,F321,F304L,F316


6	Cover	ASTM A216-WCB ASTM A351-CF8,CF8M,CF3,CF3M



7	Adjusting bolt	ASTM A193-B7,A193-B8,A193-B8M



8	Nut	ASTM A194-2H.A194-8.A194-8N



9	Bolt	ASTM A193-B7,A193-B8,A193-B8M


10	Wrench	ASTM A105-WCB

Main external and connection dimension

Model		ZDAX43-150Lb
Pressure		150Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RE		108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
L-BW		152	178	203	216	229	267	305	330	356	381	394	457	533	610	686
H		110	115	115	35	140	50	165	180	380	460	520	580	620	680	760
H		110	115	115	35	140	50	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
Weight (Kg)		8.5	9.5	0.5	12	14	18	22	26	40	60	70	130	219	381	570
Model		ZDAX43-300Lb
Model		ZDAX43-300Lb
Pressure		300Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RF		140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
L-BW		152	178	203	216	229	267	305	330	356	381	457	521	559	635	762
H		110	115	115	35	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
Weight (Kg)		9.5	10.5	12	14	16	20	24	29	53	75	85	185	230	390	550
Model		ZDA×43-600Lb
Pressure		600Lb
Size	mm	15	20	25	32	40	50	65	80	100	25	150	200	250	300	350
Size	in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RF·BW		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
L-RF·BW		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H		110	115	15	135	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
Weight (Kg)		11	13	17	20	23	27	31	36	72	98	141	245	330	515	710
Weight (Kg)		11	13	17	20	23	27	31	36	72	98	141	245	330	515	710
Model		ZDAX43-900Lb
Pressure		900Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	25C	300	350
Size	in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RF·BW		229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H		110	115	115	135	140	50	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
Weight (Kg)		13	16	21	24	28	32	40	47	91	117	165	285	420	610	860

Note:4"or above with worm gear

Спецификация

Inverted pressure balance lubricated plug valve acc. to ANS

Material for main parts

NO	Part name	Material


1	Bolt	ASTM A193-B7,A193-B8,A193-B8M


2	Nut	ASTM A194-2H,A194-8,A194-8M


3	Cover	ASTM A216-WCE ASTM A351-CF8,CF8M,CF3,CF3M


4	Gasket	Flexible graphite+stainless steel,PTFE


5	Plug	ASTM A182-Gr.F6a ASTM a182-F22 ASTM A182-F304,F316,F321,F304L,F316L


6	Body	ASTM A216-wCB ASTM A351-CF8,CF8M,CF3,CF3M


7	Stem	ASTM A182-Gr.F6a ASTM a182-F22 ASTM A182-F304,F316,F321,F304L,F316L


8	"O"ring	NBR


9	Packing	Flexible graphite.PTFE


10	Gland	ASTM A216-WCB ASTM A351-CF8,CF8M,CF3,CF3M


11	Oil nozzle


12	Check valve


13	Wrench	ASTM A47-32510,A216 WCB

Main external and connection dimension

Model		ZDAX47-150Lb
Pressure		150Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	1 1/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RE		108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
L-BW		152	178	203	216	229	267	305	330	356	381	394	457	533	610	686
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	60C	600	820	820	300	300	320	320	350	380	380
W		400	400	500	500	60C	600	820	820	300	300	320	320	350	380	380
Weight (Kg)		10	12	14	17	19	21	29	33	48	75	98	125	171	230	370
Model		ZDAX47-300Lb
Pressure		300Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
	in	1/2	3/4	1	11/4	1 1/2	2	21/2	3	4	5	6	8	10	12	14
	in	1/2	3/4	1	11/4	1 1/2	2	21/2	3	4	5	6	8	10	12	14
L-RF		140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
L-BW		152	178	203	216	229	267	305	33C	356	381	457	521	559	635	762
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	600	600	320	1000	1000	300	300	320	320	350	380	380
Weight (Kg)		12	14	16	19		24	31	36	61	86	130	190	255	380	560
Weight (Kg)		12	14	16	19		24	31	36	61	86	130	190	255	380	560
Model		7DAX47-600Lb
Pressure		600Lb
Size	mm	15	20	25	32	40	50	65	80	100	25	150	200	250	300	350
Size	in	1/2	3/4	1	1 1/4	1 1/2	2	21/2	3	4	5	6	8	10	12	14
L-RF·BW		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
L-RF·BW		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H		180	180	85	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	500	600	600	820	820	300	300	320	320	350	380	380
Weight (Kg)		14	16	18	20	24	29	35	47	91	129	210	320	660	920	1250
Model		ZDAX47-900Lb
Pressure		900Lb
Pressure		900Lb
Size	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	11/4	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14
L-RF·BW		229	229	254	279	305	368	419	381	457	559	610	737	338	965	1029
H		180	180	185	200	210	215	250	270	300	340	365	400	450	510	590
W		400	400	500	600	600	820	1000	1000	300	300	320	320	350	380	380
W		400	400	500	600	600	820	1000	1000	300	300	320	320	350	380	380
Weight (Kg)		17	29	21	24	30	37	44	65	110	160	255	380	810	1050	1460
