Epoxy Coating Pipe

Application: Used for natural gas, petroleum, water & sewage, and pipe systems

Standard:AWWA C210

Size:60.3mm-2540mm

LOOKING FOR WHICH PRODUCT YOU NEED OR SEND INQUIRY

Request a Quote

Description

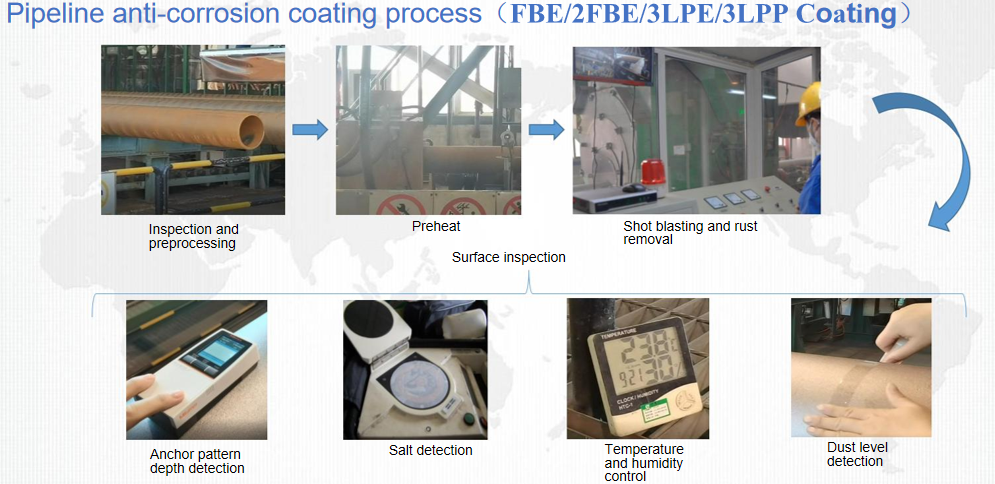

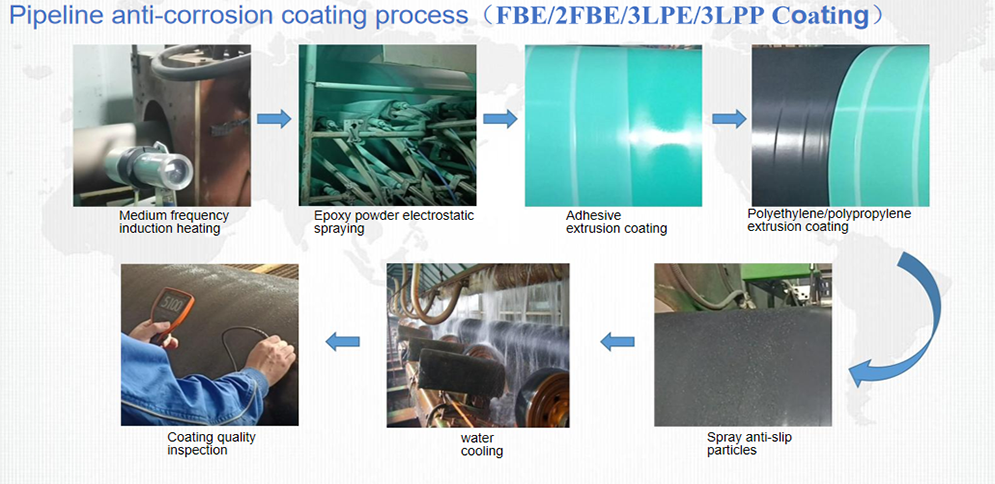

Various steel pipe external coating projects are currently implemented by centerway steel co.,ltd including single-lay er/double-layer FEB, 2PE, 3PE, 3PP, Cement mortar covering and other anti-corrosion coatings with the performed standards such as DIN30670, DIN30671, DIN30678, CAN/CSA-7245.21-M92, SY/T4013-2002, SY/TO315-97 etc

The epoxy pipe coating system is a non-invasive process which uses air to move the epoxy through the pipe, completely coating the walls as it passes through.

As the application is carried out using air, this means we can coat pipes as small as 15mm and negotiate multiple bends and tees, further reducing the need to break into the building at these points

The epoxy coating creates a barrier between the walls of the host pipe and the contents eliminating internal corrosion and helping the prevention of the growth of legionella and other micro-organisms. It also prevents leaching from lead pipes or contaminated soil.

The pipes could be carrying anything from potable water, steam, chemicals, fuels, sewage, gases, we have it covered at PLS.

涂层类别Coating Type

涂层Coating Layer

涂层厚度Coating Thickness

3PE(三层聚乙烯)Three layers polyethylene

Inside layer: epoxy (Green)

2.0-4.5mm

Mid layer: adhensive (White)

Outsidelayer:polyethylene (Black)

2PE(两层聚乙烯)Two layers polyethylene

Inside layer: adhensive

2.0-4.5mm

Outside layer: polythene

FBE(环氧粉末)

Epoxy

200-400um

环氧粉末

2FBE(双层环氧粉末)Two layers epoxy

第一层:环氧粉末(绿色)Inside layer: expoxy (Green)

400-800um

最外层:加强型环氧粉末Outer layer:intensity epoxy (sage green)

3PP(三层聚丙烯)Three layers polyethylene

第一层:环氧粉末(绿色)Inside layer: expoxy (Green)

2.5-3mm

中间层:胶粘剂(白色)Mid layer:adhesive(White)

最外层:聚丙烯(白色)Outer layer:polypropylene(white)

Cement coated


60-110mm

Specification

Standard

API 5L

Grade

PSL-1

API 5L – Gr.B/X42/X46/X52/X60/X70 etc.

( Material)

PSL-2

ISO3183 – L245/L290/L320/L360/L415/L485 etc.

    Outside Diameter Ranges

PSL-1

0.405-80(in) or 10.3mm-2032mm



PSL-2

4 1/2 -80(in) or 114.3mm-2032mm

          Wall Thickness Ranges

SCH10~SCH160  Or  STD,XS,XXS  Or  1.73mm~59.54mm

Length

For 20Ft Container

4.8m-5.8m

(negotiable)

For 40Ft Container

4.8m-12m



      Most common choice

6m, 12m

Type

Welded

ERW,LSAW/SSAW



Seamless

Cold Drawn,Hot Finished,Hot Expanded

Cap (negotiable)

Pipe size should under DN600

Pipe End

Plain end

All sizes



Bevel end

Pipe size above DN50, and the thickness should greater than 3.2mm

Standard

外涂层External Coating

涂层类别Coating type

涂层标准Coating Standard

3LPE/3LPP

DIN30670-1991,CAN/CSA Z245,21-2010,ISO21809-1-2009 SY/T 0413-2002,GB/T23257-2009

2LPE/2LPP

SY/T 0315-2002,GB/T23257-2009,ISO21809-1-2009

FBE(Fusion-bond epoxy)

SY/T 0315-2005,AWWA C213-2001,CAN/CSAZ245.20-2010,ISO218909-2-2007,API RP5L9-2001

Bitumen coating



Enamel &Tape hot-applied

BS534-1990,AWWA203-2002,AWWA214-2000

Liquid epoxy coating

AWWWA C210-2007

Polyurethane insulated coating

SY/T0415-1996,CJ/T114-2000.EN253-1994



内涂层Internal Coating

Liquid Epoxy Coating

AWWAC210-2007

FBE

AWWAC213-2001

Cement Mortar Lining

BS534-1990,AWWA C205-2001

Bitumen Coating

BS534-1990
