Slotting

WIRE WRAPPED SCREEN

DESCRIPTION

The wire-wrapped screen consists of perforated pipe, outer jacket, end ring and centralizer. Key-stone or house shape wires are simultaneously wrapped and welded to form uniform slots.

The jacket is then placed over perforated pipe and welded to each end. The wire-wrapped screen's strength, high quality and precise slot control make it an excellent choice for deep, vertical wells as well as horizontal wells.

ADVANTAGES

1.Key-stone shaped slot pattern, low risk to plugging. easy to clean.Superior resistant to corrosion and long lifespan in applications.

2.Optimized design for perforation,all welded structure, high mechanical strength which is competitive with casing of the same size.

3.Minimum slot opening: 0.1mm,which can satisfy the most of well-completion requirements.

High flow area.

4.The technical is mature, good adaptability.

APPLICATION

Gravel-packing in cased-hole completions of vertical wells, directional wells,horizontal wells, multi-lateral wells and open-hole completions.

NOTES

Wire and rod material: AISI304,AISI 304L, AISI316, AISL316L.

Base-pipe:API J55, N80,P110, C90,13Cr, or more.

Open area up to 60%.

Slot width: 0.1- 2.0mm.

Wire Wrapped Screens length (m):1.8,3.0,6.0,9.0,12.0, or more.



SLOTTED LINER

FEATURES

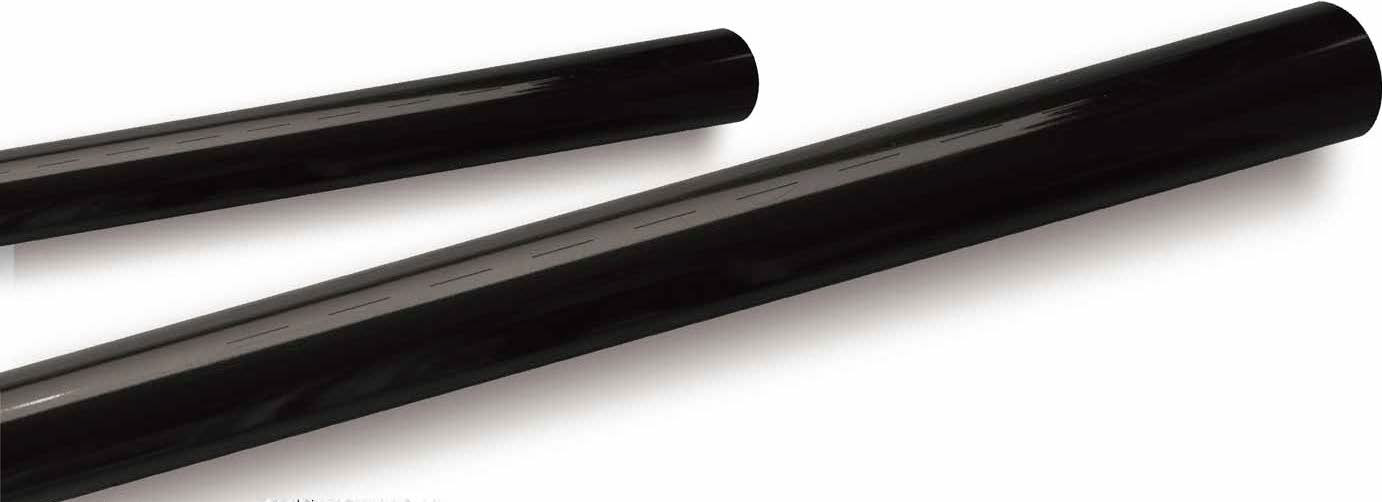

Slotted liners are made from tubular by saw-cutting slot configurations. Slot widths are often referred to in terms of gauge. Slot or screen gauge is simply the width of the opening in inches multiplied by 1,000. For instance, a 12-gauge screen has openings of 0.012 in.

The slots can be straight or keystone shaped, as illustrated in following picture. The keystone slot is narrower on the outside surface of the pipe than on the inside. Slots formed in this way have an inverted "V cross-sectional area and are less prone to plugging because any particle passing through the slot at the outside diameter (OD)of the pipe will continue to flow through, rather than lodging within the slot.

APPLICATION

The slotted liners are usually less costly. They have smaller inflow areas and experience higher pressure drops during production. Slotted liners also plug more readily than screens. They are used where well productivity is small and economics cannot support the use of screen.

BRIDGE SLOT SCREEN

FEATURES

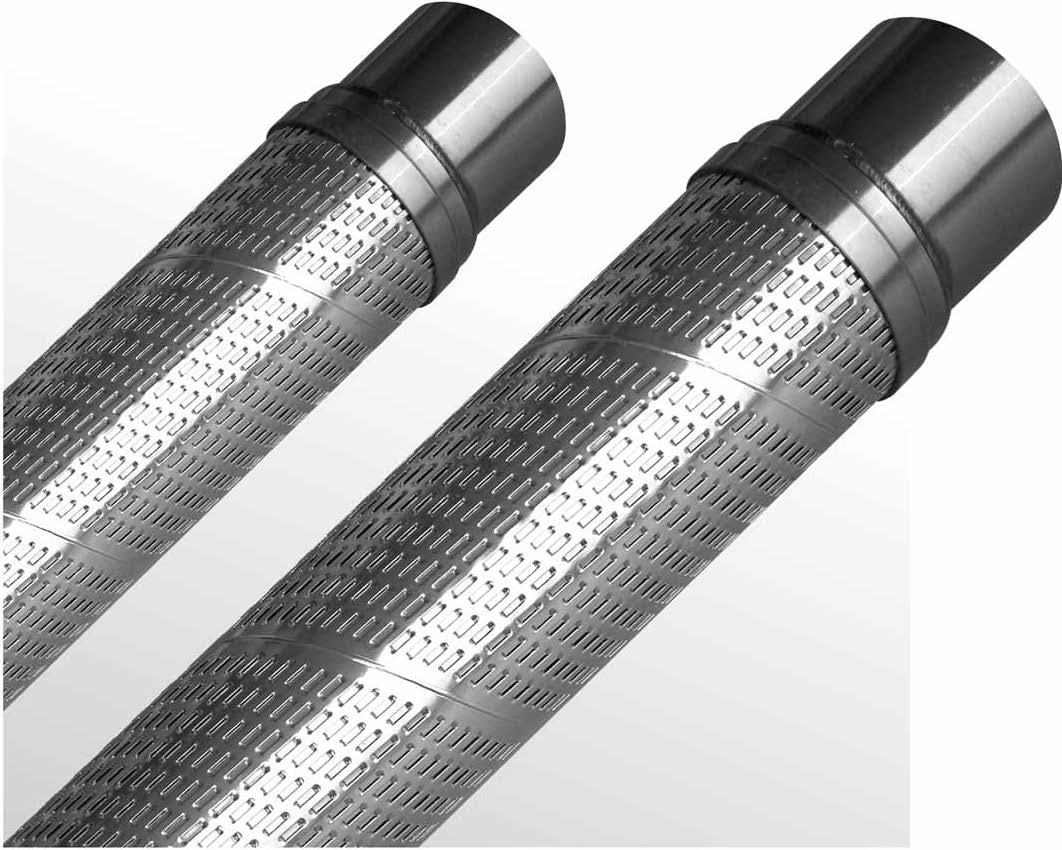

1.Screen features bridge-like slot,which creates a gap between the well casing and the packed gravel.

2.Bridge slots are spaced in rows or in staggered state.

3.Bridge slotted screens are first punched in a flat sheet, which is completely CNC operated.The slot widths are precise and can change as practical requirements. Then the flat sheet is subsequently rolled and welded into a tube.

4.Bridge slot screen has extensive applications, including water and oil wells, development of geothermal development and mineral water.

ADVANTAGES

1.Bridge slot has outstanding anti-plugging performance for its unique bridge construction.2.Bridge construction also enhances the mechanical strength against twisting, compressive and tensile forces.

3.Diverse external coatings are available to extend the operational lives of watering wells.

4.Bridge slot screen is lightweight and quite affordable compared with other conventional well screens.

5. Slot widths can be customized to satisfy customers' specific requirements.

NOTES

1.Wall thickness: 3mm -10mm.

2.Outside diameter:89mm - 2000mm.

3.Slot width: 0.5mm - 5mm.

4.Low carbon steel Q235,stainless steel 304,304L,316L. To prolong its service life,galvanized screens are still supplied.


MULTILAYERS PREMIUM SCREEN

DESCRIPTION

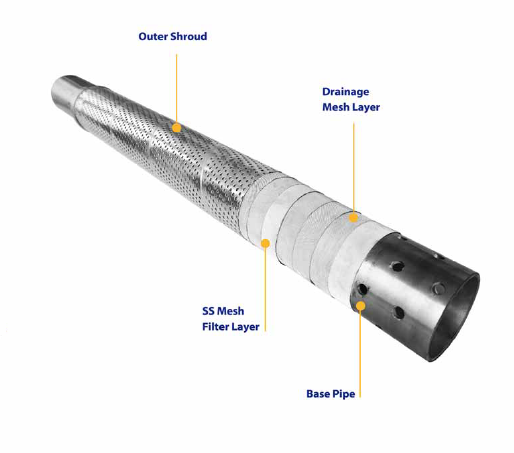

Multilayers Premium Screen performance is derived from two characteristics, the filter media and secondly the overall construction of the screen.Consists of base pipe, layered filtration jacket and outer shroud.

Base-pipe: OCTG Base-pipe perforation 6-7%%

Common metallurgies: L80,13Cr, Super 13Cr

Common connections:API & all Premium connections

Inner Drainage Layer: 5 Mesh

Common metallurgies: SS304,316LFilter: 2-Layer Sintered Mesh

Common Metallurgies: 316L,Alloy20

Common Pore Sizing: FINE μm,MEDIUM μm, COARSE μm

Out Drainage Layer: 5 Mesh

Shroud: 20% open area


PERFORATED PIPE

DESCRIPTION

The Perforated Liner or Pre-perforated Casing is manufactured with a44ft 88 spindle Drill Press. Joints with sizes up to Φ20"- length range 3and grades up to 13Cr110 are perforated in one handling.

Our standard spiral and staggered perforation patterns use  3/8" and Φ1/2" diameter holes, to create the required open area.

Upon request, custom sizes hold can be drilled in any number and any pattern.

Pipe is deburred internal and external as well as drift tested according to API standards. Every hole is visually inspected and cleaned of burr material.

The size, grade and weight of the base- pipe are according to API casing or tubing specification.
