What is a schedule 80 seamless steel pipe and why do you need it?

High pressure ruins weak pipes quickly. Sudden leaks cause long delays and cost you a lot of money. You need a strong pipe. A schedule 80 seamless steel pipe solves this problem fast. A schedule 80 seamless steel pipe is a strong, thick steel tube with no welded seams. It handles high pressure and high heat well. Builders use it in chemical plants, oil fields, and underground lines. It offers very high safety for tough industrial jobs.

You might want to leave this page and skip the details now. But leaving early means you could buy the wrong materials and lose project money.

What makes seamless steel pipe different from welded pipe?

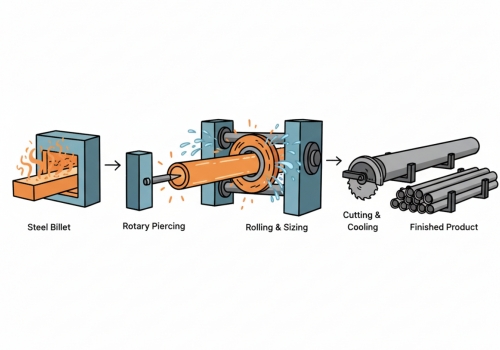

Welded pipes can split under heavy pressure. A broken pipe stops your whole construction project. We use seamless steel pipes to stop these sudden breaks. We make seamless pipes by heating and piercing solid steel blocks. Welded pipes bend flat steel sheets and join them with a seam. Seamless pipes have no weak joints. This smooth shape lowers liquid friction and handles much higher pressure than welded pipes.

We know EPC buyers want safe materials. I always tell my clients to look closely at the pipe structure. A schedule 80 seamless steel pipe looks completely smooth on the outside and the inside. We do not use any welding process here. This smooth surface brings big benefits to your project. First, fluids flow fast without hitting rough weld marks. This saves your pump energy. Second, the pipe has no weak lines. High pressure will not split it open. We see no deformation during cold bending jobs. The pipe shows no cracks. It has no oxide scale on the surface. It shows very good tensile strength and impact resistance. We serve many large EPC companies. Buyers often tell me they worry about system failures. Welded pipes often fail at the seam under high stress. Seamless pipes remove this big risk. They cost a bit more at first. But they last much longer. You save big money on repairs over many years.

How does schedule 80 compare to schedule 40 pipe?

Using thin pipes in high-pressure jobs causes great danger. You risk worker safety and face big fines. You must choose the right wall thickness. Schedule 80 and schedule 40 pipes have the same outside size but different wall thicknesses. Schedule 80 walls are much thicker. A schedule 40 pipe handles normal water pressure. A schedule 80 pipe handles heavy industrial stress. Let me break down the real differences for you. The main difference is the wall thickness. A schedule 40 pipe has a thin wall. People use it for basic residential water lines or simple farm irrigation. It works well for low pressure. But a schedule 80 seamless steel pipe is different. It has very thick walls. We use it for high-pressure industrial jobs. You will find it in strong hydraulic systems and deep underground lines. Let us look at specific numbers. The wall thickness of a 1-inch schedule 40 pipe is about 0.133 inches. But the wall thickness of a 1-inch schedule 80 pipe is about 0.179 inches. This means the schedule 80 pipe is about 30 percent thicker. Thicker walls mean more steel material. More material means a higher cost and a longer making time. When you design a pipeline, you must balance your cost and strength. If your system has high heat or strong chemicals, you must spend the extra money. The thicker pipe gives you peace of mind.

What are the dimensions and weight of a schedule 80 pipe?

Guessing pipe sizes leads to wrong factory orders. Wrong orders delay your whole construction. You need exact numbers to plan your buying list. The dimensions of a schedule 80 pipe depend on its nominal size. The chart below shows the exact outside diameter, wall thickness, and weight per unit. You can use this chart to match the ASME/ANSI standards for your safe pipeline design. I always share a detailed size chart with EPC buyers. You need clear data to calculate shipping weight and project costs. Below is a full chart for schedule 80 pipes. It covers nominal sizes from 1/8 inch up to 24 inches.

Nominal size [inches]	Outside diameter [inches]	Outside diameter [mm]	Wall thickness [inches]	Wall thickness [mm]	Weight [lb/ft]	Weight [kg/m]
1/8	0.405	10.3	0.095	2.41	0.31	0.47
1/4	0.54	13.7	0.119	3.02	0.54	0.8
1/2	0.84	21.3	0.147	3.73	1.09	1.62
3/4	1.05	26.7	0.154	3.91	1.47	2.2
1	1.315	33.4	0.179	4.55	2.17	3.24
1 1/4	1.66	42.2	0.191	4.85	3	4.47
1 1/2	1.9	48.3	0.2	5.08	3.63	5.41
2	2.375	60.3	0.218	5.54	5.02	7.48
2 1/2	2.875	73	0.276	7.01	7.66	11.41
3	3.5	88.9	0.3	7.62	10.25	15.27
3 1/2	4	101.6	0.318	8.08	12.5	18.63
4	4.5	114.3	0.337	8.56	14.98	22.32
5	5.563	141.3	0.375	9.53	20.78	30.97
6	6.625	168.3	0.432	10.97	28.57	42.56
8	8.625	219.1	0.5	12.7	43.39	64.64
10	10.75	273	0.594	15.09	64.43	96.01
12	12.75	323.8	0.688	17.48	88.63	132.08
14	14	355.6	0.75	19.05	106.13	158.1
16	16	406.4	0.844	21.44	136.61	203.53
18	18	457	0.938	23.83	170.92	254.55
20	20	508	1.031	26.19	208.87	311.17
24	24	610	1.125	30.96	296.58	442.08

When the nominal size goes up, the wall thickness and weight grow fast. For instance, a 4-inch pipe weighs 22.32 kg per meter. A 24-inch pipe is super heavy. It weighs 442.08 kg per meter. You must think about this weight when you plan your transport and lifting tools. Big weight means big shipping costs. As a one-stop supplier, my company helps you plan these details. We arrange good packing and safe shipping for you.

How do we help clients succeed in Turkey and Africa?

Finding a good supplier is very hard. Bad suppliers send poor quality pipes late. We provide one-stop service to remove your buying stress completely. We export high-quality steel pipes to many global markets. Our main successful areas include Turkey and Africa. We help EPC contractors get correct materials on time. We manage production, testing, and shipping so you can build safely.

I want to tell you a short personal story. Last year, I worked with a large EPC company. They had a big oil project in Africa. They needed strong pipes for harsh hot weather. The local area had highly corrosive conditions. I suggested our schedule 80 seamless steel pipe. We checked the ASME/ANSI standards together. They ordered 500 tons of our thick pipes. We finished production in just four weeks. We also passed the SGS third-party test with no problems. Another time, a buyer in Turkey needed pipes for a deep underground water system. He wanted a one-stop supplier to save time. We packed all the pipes, special fittings, and strong valves into one shipment. He got his cargo on time. His project did not stop. Our factory holds ISO and CE certificates. This means we make safe products every day. We share China-made quality with global customers. We want to build win-win partnerships everywhere. You can trust our 28 years of industry experience.

Conclusion

Schedule 80 seamless steel pipes offer great strength for high-pressure jobs. By choosing the right size and a trusted supplier, you ensure a safe and long-lasting project.
