3 Common Connection Methods for Spiral Steel Pipes: A Complete Guide

Introduction

Spiral steel pipes (also known as spiral welded steel pipes) are widely used in fluid transportation, structural support, and industrial piping systems due to their cost-effectiveness and ability to be manufactured in large diameters. However, choosing the right connection method for spiral steel pipes is crucial for ensuring system integrity, sealing performance, and long-term durability.

In this article, we explore the three primary connection methods for spiral steel pipes, their advantages, limitations, and ideal applications.

1. Flange Connection

Overview

Flange connections are one of the most traditional methods for joining spiral welded steel pipes. They involve bolting two flanges (flat or raised-face discs) together with a gasket in between to ensure a tight seal.

Advantages

✔ Quick installation – Requires simple tools (wrenches, bolts).
✔ Easy disassembly – Ideal for pipelines requiring frequent maintenance or relocation.
✔ Suitable for low-pressure systems – Often used in drainage, slurry transport, and temporary piping.

Disadvantages

✖ Limited sealing capability – Not ideal for high-pressure or high-temperature applications.
✖ Higher risk of leakage – Gaskets may degrade over time.

Best Applications

· Slurry pipelines (e.g., mining, dredging).

· Temporary water discharge systems.

2. Grooved Coupling (Groove Connection)

Overview

Grooved coupling is a modern spiral steel pipe connection method that uses a grooved pipe end and a clamp (coupling) with a rubber gasket for a secure, leak-proof joint.

Components

· Rubber sealing ring – Ensures pressure-tight sealing.

· Clamp (coupling) – Compresses the gasket onto the grooved pipe.

· Locking bolts – Secures the connection.

Advantages

✔ Fast and simple installation – No welding or threading required.
✔ Excellent sealing performance – The rubber gasket enhances pressure resistance.
✔ Vibration & shock absorption – Flexible couplings allow slight pipe movement.

Best Applications

· Fire protection systems (sprinkler lines).

· HVAC (heating & cooling water pipes).

· Oil & gas pipelines.

3. Clamp (Mechanical) Connection

Overview

Clamp connections are an advanced spiral steel pipe joining method that combines rigidity and flexibility, making them suitable for both above-ground and buried pipelines.

Types of Clamp Fittings

· Rigid clamps – Prevent pipe movement (used in fixed systems).

· Flexible clamps – Allow slight movement (ideal for seismic zones).

Advantages

✔ Versatile – Works in high-pressure and corrosive environments.
✔ No welding needed – Reduces labor costs and installation time.
✔ Long-term reliability – Resists vibration and thermal expansion.

Best Applications

· Chemical & petrochemical plants.

· Wastewater treatment systems.

· Military and thermal power pipelines.

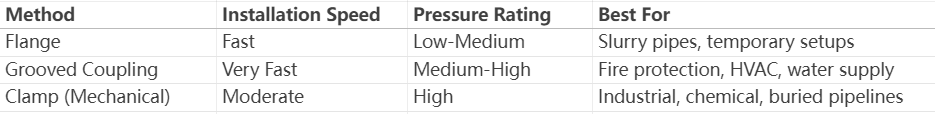

Comparison of Spiral Steel Pipe Connection Methods

Conclusion: Choosing the Right Connection for Spiral Steel Pipes

The forming process of spiral steel pipe makes it a cost-effective solution for large-diameter piping systems. However, selecting the best connection method for spiral welded steel pipe depends on:
✅ Pressure requirements (low vs. high).
✅ Installation environment (buried, exposed, or mobile).
✅ Maintenance needs (frequent disassembly vs. permanent joints).

For low-pressure, temporary systems, flange connections are sufficient. For high-pressure, permanent installations, grooved couplings or mechanical clamps provide superior sealing and durability.

By understanding these spiral steel pipe connection techniques, engineers and contractors can optimize pipeline performance while reducing installation costs.
